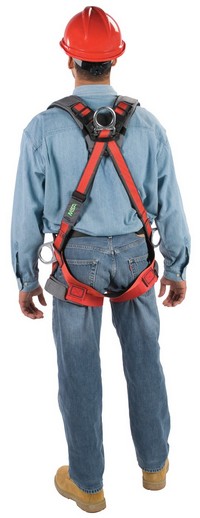

For the latest design features that improve user comfort, ease of use, durability, and user safety, choose the EVOTECH Full Body Harness. The EVOTECH Harness is RFID enabled, offering the Field ID Safety Network with Field ID access to provide a reliable, on-line inspection and safety compliance (ISCM) management system.
- Web material type and dimensions: 1 3/4'' (44 mm) nominal width, polyester with NanoSphere coating
- Hardware materials and coatings: Zinc-plated, stamped or forged alloy steel
- Thread material and type: Sub-pelvic, torso, and leg strap stitches: 3 cord Polyester
- Web finials: 5 cord Polyester
- Plastic materials: Nylon, Santoprene
- Label materials: Valeron
- Web minimum breaking strength: 7,000 pounds
- D-ring minimum breaking strength: 5,000 pounds, proof-tested to 3,600 pounds
- Maximum capacity: 400 pounds (181 kg)
- Standards met: OSHA, ANSI Z359.1, ANSI A10.32-2004, CSA Z259.10-06
- Padding materials: Outside top material: 1000 denier nylon - Inside material: 3D mesh with monofilament yarn
- Outside bottom: 3D mesh
- RFID chip frequency: Passive, High frequency
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Breathable padding with moisture-wicking material keeps users cooler
- No binding edge on shoulder padding prevents neck chafing
- Sub-Pelvic Strap with patented variable width webbing provides 50% more surface area for improved weight distribution and improves comfort
- Patent-pending leg strap design keeps leg straps in place, increasing mobility and comfort
- Dual-color webbing - red pattern on outside, black on inside - promotes easy identification of twisted webbing
- Patent-pending web management system provides means of storing excess webbing
- 3-position back D-ring allows users to determine optimal lanyard connection position
- Web finials prevent fraying on web ends and simplify threading through buckles
- NanoSphere coating on webbing repels dirt, grease, moisture, etc.
- Available with Suspension Trauma Safety Step to improve post-fall comfort and help prevent suspension trauma
- Reflective webbing integrated into harness webbing increases visibility in low-light environment
- OSHA, ANSI Z359.1-2007, ANSI A10.32-2004, CSA Z259.10-06
|
|
|
|
|
|
|
