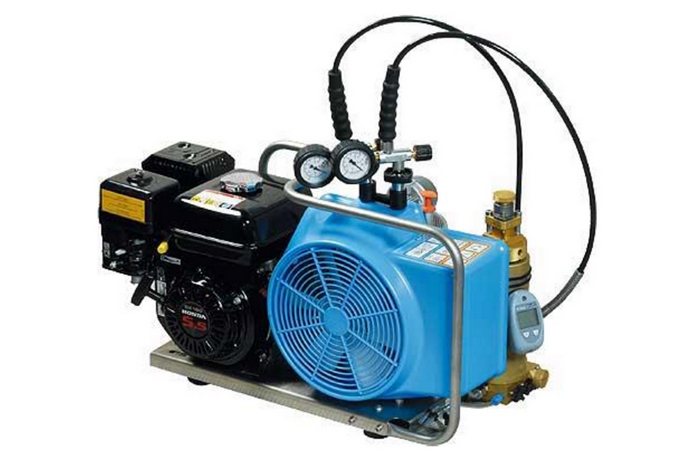

JORDAIR DIVE LINE SERIES COMPRESSORS

JORDAIR DIVE LINE SERIES COMPRESSORS

Alternative Views:




Product Code: JOR-DIVELINECOMPRESSORS
CALL FOR PRICING

Description Technical Specs Extended Information

These are basic compressor packages that come standard with a basic flat frame, drive motor, oil and water separator, purifier, manual condensate drain valves, 1 x fill hose and final stage pressure relief valve and gauge. These models DO NOT include any electrical controls, interstage pressure gauges or auto drain system. Starting and stopping the compressor, draining the separators and monitoring oil pressure and air temperature are left to the customer. Please see the Compressor Upgrade Options section to add available options. Jordair's standard aluminum alloy filtration systems are all rated for 6500 PSIG* service and include an oil and water separator, check valve, purifier, pressure maintaining valve, manual drain valve and auto drain cycle counter.
Features
  • New high velocity, full flow cooling fan assembly that produces high velocity airflow over the coolers, pressure cylinders and crankcase to cool the compressed air and lubricating oil
  • Drive gear designed for an operating life of up to 30,000 hours
  • Stainless steel inter and after-coolers for high efficiency cooling and corrosion free operation
  • Cylinders are hardened through a plasma-nitrate process for up to 10,000 hours of operating life and low wear with excellent lubricating oil retention
  • Redesigned rings for the HP piston are synthetic material for low wear and a long operating life with very little oil carry over
  • Single-piece crankcase made of a high strength aluminum alloy for higher stability, larger oil capacity, and low vibration
  • Full flow oil system with a crankshaft-driven gear pump and full flow oil filter
  • Visual oil level indicator is designed show the accurate oil level
  • New reed valve on the first stage which offers higher efficiency and redesigned intake filter reduces intake valve noise
  • New final stage oil cooled cylinder and cylinder-head for lower air discharge temperature
